Fire Rated Door
Fire RatedFire Rated door system
Fire Rated Door
Fire-resistant door sets designed to protect life and property by limiting the spread of fire and smoke while preserving a safe escape route.
JC Fire Rated Doors are engineered for emergency exits, staircases, service areas and other protected openings. Available in single- and double-leaf configurations, with optional vision panels, louvers and compatible fire-door hardware.
- Fire resistance options from 30 minutes up to 2 hours

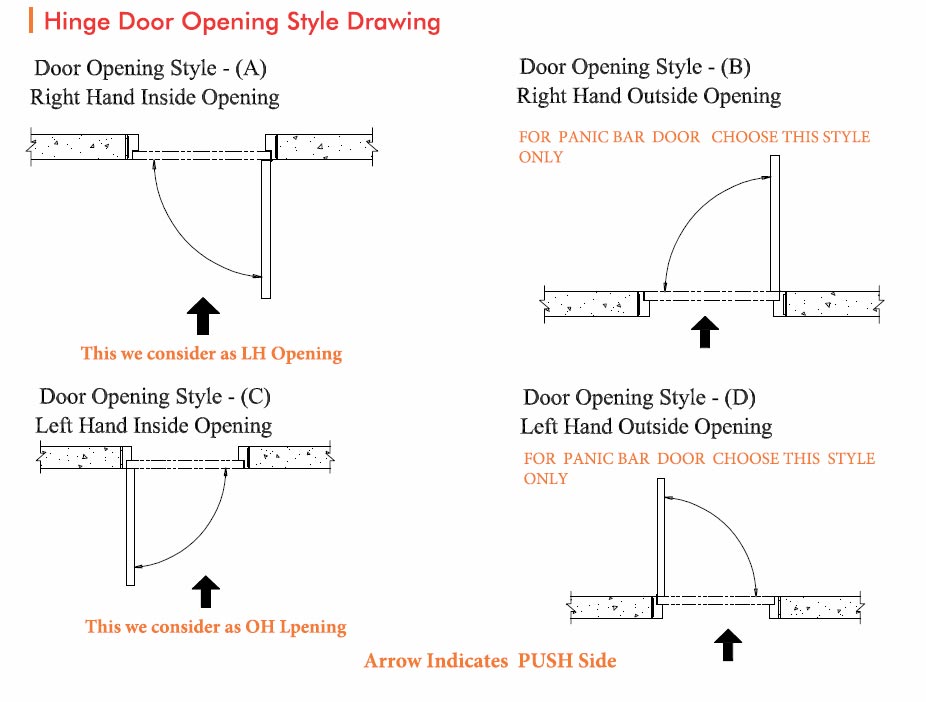

- Single- and double-leaf configurations
- Optional fire-resistant glazing and self-closing louvers
- Factory preparation for selected hardware
- Galvanized or stainless-steel construction options
- Custom sizes, finishes and ironmongery
Technical noteConstruction information published by JC Fire Door references IS 3614 Part II and BS 476 Part 22. Project-specific certification and test evidence should always be verified before procurement.

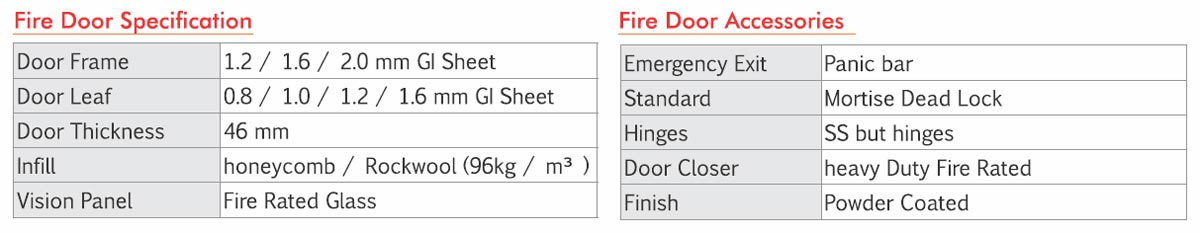

Construction reference
Typical fire-rated door build-up
The final assembly must follow the approved project submittal and applicable test evidence.
Explore more
Related door systems
Technical enquiry
Send requirementNeed a submittal for Fire Rated Door?
Send the opening schedule, rating, dimensions, wall type, finish and selected hardware.
